Home > Products > Lexmark > Monochrome Multifunction Printers > MX510 / MX511

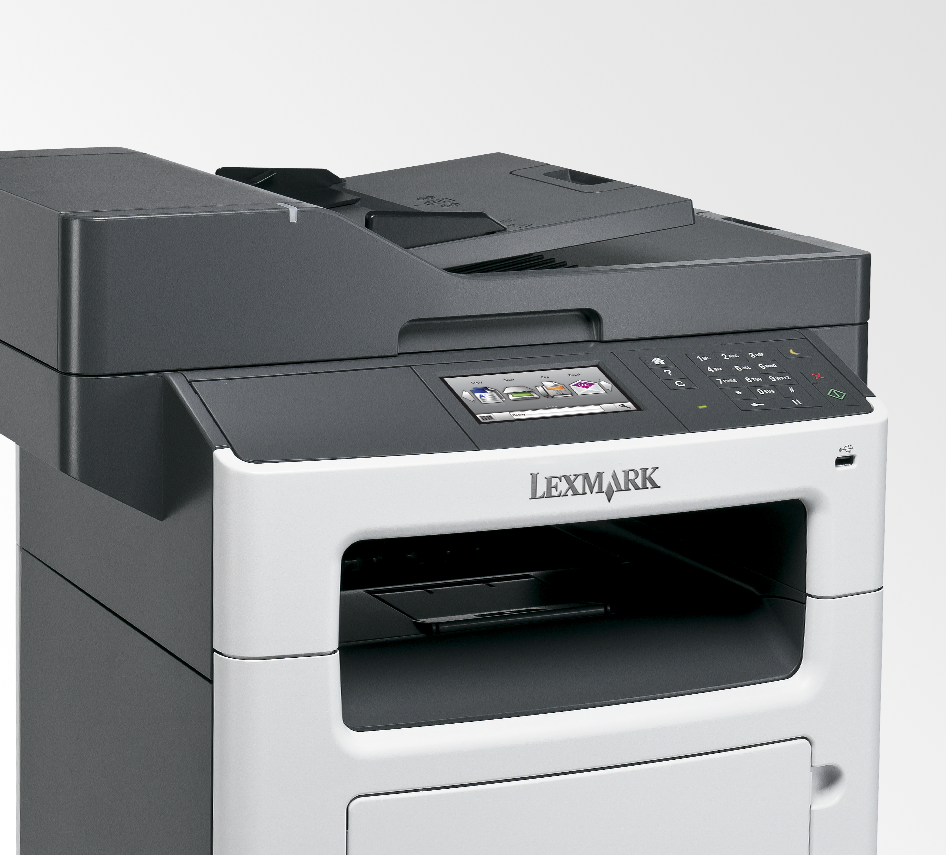

MX510 / MX511de

Faster Processing
Improve your print, scan and copy speeds by taking advantage of up to 2.5 GB of upgradable memory, an 800 MHz dual-core processor and Gigabit Ethernet.

Reliable Performance
Easily print up to 12,000 pages per month, plus enjoy fewer maintenance hassles, thanks to our state-of-the-art paper handling.

Keep Jobs Moving
With a maximum input capacity of up to 2,000 sheets and an ultra high yield toner cartridge, you won’t have to add paper or change cartridges as often.

Smart and Easy to Use
A 10.9-cm (4.3-inch) colour touch screen provides access to pre-installed productivity solutions and lets you operate the system through smart and intuitive navigation.

Work Smarter Not Harder
If you can use a mobile phone application, you can use our pre-loaded solutions. Touch the screen and access shortcuts to scan, print or send faxes, emails and other business-critical documents fast.

Standard Ports

One Internal Card Slot

USB 2.0 Specification Hi-Speed Certified (Type B)

Gigabit Ethernet (10/100/1000)

Front USB 2.0 Specification Hi-Speed Certified port

(Type A)

Rear USB 2.0 Specification Hi-Speed Certified port

(Type A)

Optional Network Ports

Internal MarkNet N8350 802.11b/g/n Wireless

Direct USB


Ethernet Network


Printable Area (metric)

4.0 mm of the top, bottom, right and left edges


Laser Cartridge Yields4

2,500-page Cartridge

10,000-page High Yield Cartridge

20,000-page Extra High Yield Cartridge

Imaging Unit Estimated Yield

Up to 60000 pages, based on 3 average letter/A4-

size pages per print job and ~ 5% coverage3

Packaged Size (mm - H x W D)

612 x 543 x 599 mm

Packaged Weight, kg

25.4 kg

Size (mm - H x W x D)

502 x 489 x 452 mm


21.8 kg

Quiet Mode

51 dBA



Product Warranty

1-Year Onsite Service, Next Business Day

Product Certifications

ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003

Class B, BSMI Class B, VCCI Class B, US FDA, UL

60950-1, FCC Class B, cUL CAN/CSA-C22.2

60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC

60825-1, CE DoC (EN 62301 Class B, EN 62311,

CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN

61000-3, EN 55022 Class B, EuP, EN 55024, UL),


AR, KC mark, UL GS mark, EC 1275, MET-I, ISO


Maximum Monthly Duty Cycle

Up to 100000 pages per month

Recommended Monthly Page Volume

2000 - 12000 pages2

Scan File Formats (Send as)


Archival PDF (A-1a, A-1b), Searchable PDF

(optional OCR with 1GB RAM and hard disk required)

Highly compressed PDF (1GB RAM and hard disk


Scan Destinations

e-mail, FTP, USB Flash drive

USB or Network connected computer

Lexmark Document Solutions Suite (LDSS)


Dual Core, 800 MHz

Memory, Standard

512 MB

Memory, Maximum

2560 MB

Hard Disk

Option available

Included Paper Handling

250-Sheet Input

100-Sheet Multipurpose Feeder

150-Sheet Output Bin

Integrated Duplex

Paper Handling Optional

250-Sheet Tray

550-Sheet Tray

550-Sheet Lockable Tray

Paper Input Capacity, Standard

Up to 350 pages 75 gsm bond

Paper Input Capacity, Maximum

Up to 2000 pages 75 gsm bond

Paper Output Capacity, Standard

Up to 150 pages 75 gsm bond

Paper Output Capacity, Maximum

Up to 150 pages 75 gsm bond

Paper Weight Range Supported -

Standard Tray (gsm) 60 - 120 gsm


50-Sheet Automatic Document Feeder

ADF Paper Input Capacity

Up to 50 pages 75 gsm bond

ADF Paper Output Capacity

Up to 50 pages 75 gsm bond

Finishing Option


Number of Paper Inputs, Standard


Number of Paper Inputs, Maximum


Media Sizes Supported

Card Stock, Envelopes, Paper Labels, Plain Paper

Transparencies, Refer to the Card Stock &

Label Guide.

Media Sizes Supported

10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5

DL Envelope, Executive, Folio, JIS-B5, Legal

Letter, Statement, Universal, Oficio, A6

Part Number

35S5862 / 3

Print Technology

Monochrome Laser

Function Colour

Colour Scanning, Copying, Faxing, Network

Scanning, Printing

Workgroup Size

Medium Workgroup

Touch Screen Display



Lexmark e-Task 10.9 cm colour touch screen

Print Speed (A4, Black)

Up to 42 ppm5

Print Speed (A4, Black) Duplex

Up to 18 spm5

Time to First Page (Black)

As fast as 6.5 seconds

Duplex (2-sided) Printing

Integrated Duplex

Print Resolution, Black

1200 Image Quality

1200 x 1200 dpi

2400 Image Quality

600 x 600 dpi

Copy Speed (A4, Black)

Up to 42 ppm5

Copy Speed (A4, Black) Duplex

Up to 21 spm5

Time to First Copy (Black)

As fast as 6.5 seconds

Reduce / Enlarge Range

25 - 400 %

Simplex Scan Speed (A4/Ltr, Black)

Up to 41 / 43 sides per minute

Scan Speed (A4/Ltr, Colour)

Up to 19 / 20 sides per minute

Duplex Scan Speed (A4/Ltr, Black)

Up to 18 / 19 sides per minute

Duplex Scan Speed (A4/Ltr, Colour)

Up to 8 / 9 sides per minute

Scan Area, Maximum (mm)

215.9 x 355.6 mm

ADF Scan

RADF (reversing Duplex)

Scanner Type

Flatbed scanner with ADF

Scan Technology


Optical Scanning Resolution

600 X 600 ppi (colour)

1200 X 600 ppi (black)

Product Specifications
